316L 10000kW/Rn2 Metal Fiber Gas Burner

Place of Origin Yiyang,China
Brand Name huitong
Certification SGS
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details paper carton
Delivery Time 5-8 work days
Payment Terms L/C, D/A

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 316L Size Be Customized
Warrenty 3 Years Product Name Metal Fiber Gas Burner
Certification SGS Feature Anti Shock
High Light

Metal Fiber Gas Burner 10000kW/Rn2


316L Metal Fiber Burner


Shock Resistant Metal Fiber Burner

Leave a Message
Product Description

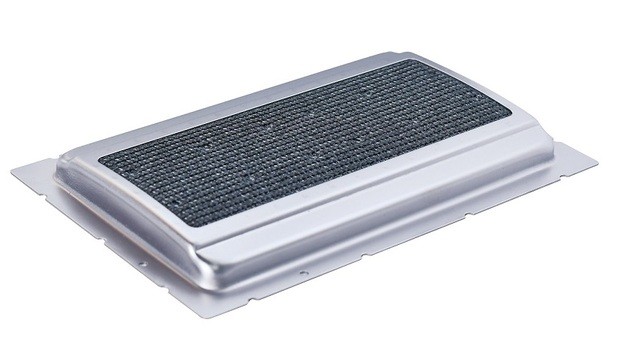

316L 10000kW/Rn2 Metal Fiber Gas Burner Shock resistant



The main material used in metal fiber gas burners is special iron-chromium-aluminum fiber with a diameter of about 30-50μm. The fiber can be used for sintering or knitting to make a special transparent material with a three-dimensional network structure for metal fiber burner. Some special varieties can be used in the environment of about 1000 °C for a long time, and can withstand a temperature of 1300 °C for a short time.

* High operating temperature: 1100 ° C (Highest temperature 1250 ° C)
* Large load adjustment range: Infrared combustion mode: 100-800kw/m2; Blue flame combustion mode: 1000-10000kw/m2
* Low resistance: infrared combustion mode: <50pa; blue flame combustion mode: <200pa
* Long lifetime: 20000h
* High radiation efficiency: >50%
* Burn evenly
* Thermal inertia: fast heating and cooling
* Thermal shock resistance: drastic changes in thermal load do not cause damage to materials

* Resistance to mechanical shock: a certain mechanical impact has no effect on the material
* Be made into various shapes of burner
