High-Efficiency Ultra-Fine Porous Metal Fiber Felt And Titanium fiber Felt

Place of Origin China
Brand Name Huitong
Certification SGS,ISO9001-2015
Model Number Titanium fiber felt
Minimum Order Quantity 1
Packaging Details customized packaging as required.
Delivery Time 10-30days
Payment Terms T/T
Supply Ability 2000pieces per months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Titanium Colour Grey
Thickness 0.25mm\0.4mm\0.8mm\1mm\5mm Size Customized Size,maximum Size:1600mm*600mm
Porosity 30-90%(Customized As Request) Aperture Customized As Request,12μm &20μm&30μm&50μm
High Light

90% Porosity Titanium Fiber Felt


GDL Titanium Fiber Felt


5mm Thickness Titanium Fiber

Leave a Message
Product Description

High-Efficiency Ultra-Fine Porous Metal Fiber Felt And Titanium Fiber Felt

Hydrogen can be used as a clean and renewable green energy, and Proton Exchange Membrane water electrolysis (PEMWE) to produce hydrogen is one of the main methods for hydrogen production. The technology uses the proton exchange membrane (PEM) as a solid electrolyte to replace the alkaline electrolyte and diaphragm, and uses pure water as the electrolyte.

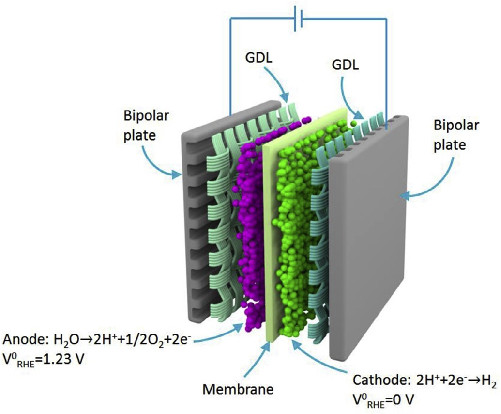

In the PEM water electrolysis hydrogen production device, the membrane electrode composed of the diffusion layer (Gas Diffusion Layer, GDL), the catalytic layer and the proton exchange membrane is the main place for the electrochemical reaction of the electrolytic cell, and is the core component of PEMWE.

High-Efficiency Ultra-Fine Porous Metal Fiber Felt And Titanium fiber Felt 0

The Gas diffusion layer(GDL) not only has the functions of supporting the Catalyst Coated Membrane (CCM), evenly distributing the reaction water, and discharging the generated gas in time, but also can realize functions such as conducting current, and is one of the key components affecting the performance of the electrolytic cell.


A good diffusion layer material should have the following characteristics:

1) Good electrical and thermal conductivity, the contact resistance between the electrode catalysts can be kept at a low level to reduce the electrolysis overpotential;

2) Strong acid corrosion resistance, the diffusion layer of the anode should have good resistance to oxidation corrosion in order to overcome the long-term contact oxygen evolution reaction, while the cathode

The extremely diffusion layer should be resistant to hydrogen embrittlement in order to overcome the long-term exposure to hydrogen evolution reaction;

3) Porous and elastic, since the diffusion layer is close to both sides of the membrane electrode and plays a supporting role for the membrane electrode, it can withstand a certain pressure;

4) Long service life and cheap price.

In the comparison of titanium fiber felt, sintered titanium plate and carbon paper as anode diffusion layer, it is found that titanium fiber felt has the best electrolytic performance, the smallest ohmic resistance and good stability, so titanium fiber felt is more suitable as the anode diffusion layer of PEMWE.

High-Efficiency Ultra-Fine Porous Metal Fiber Felt And Titanium fiber Felt 1

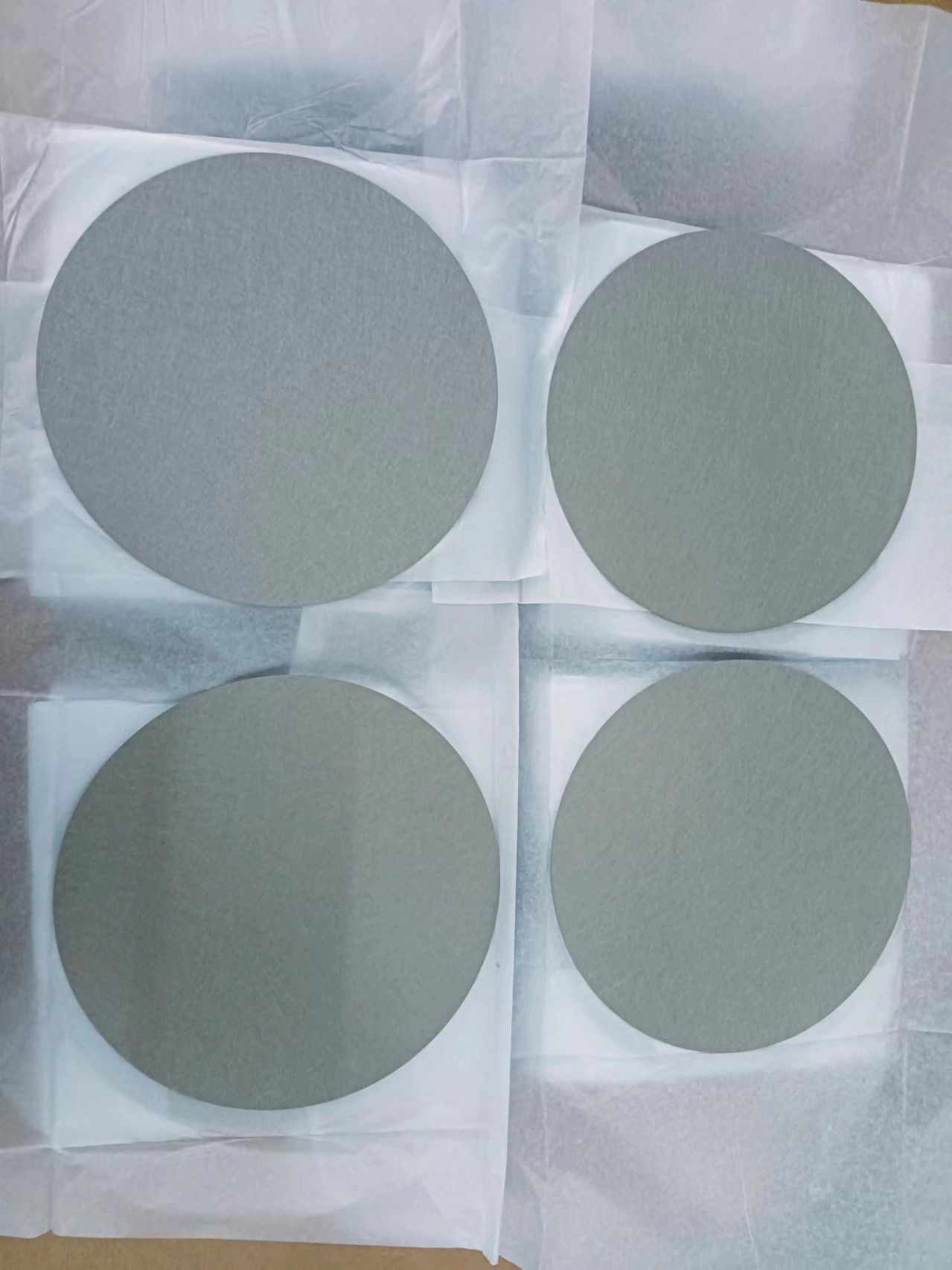

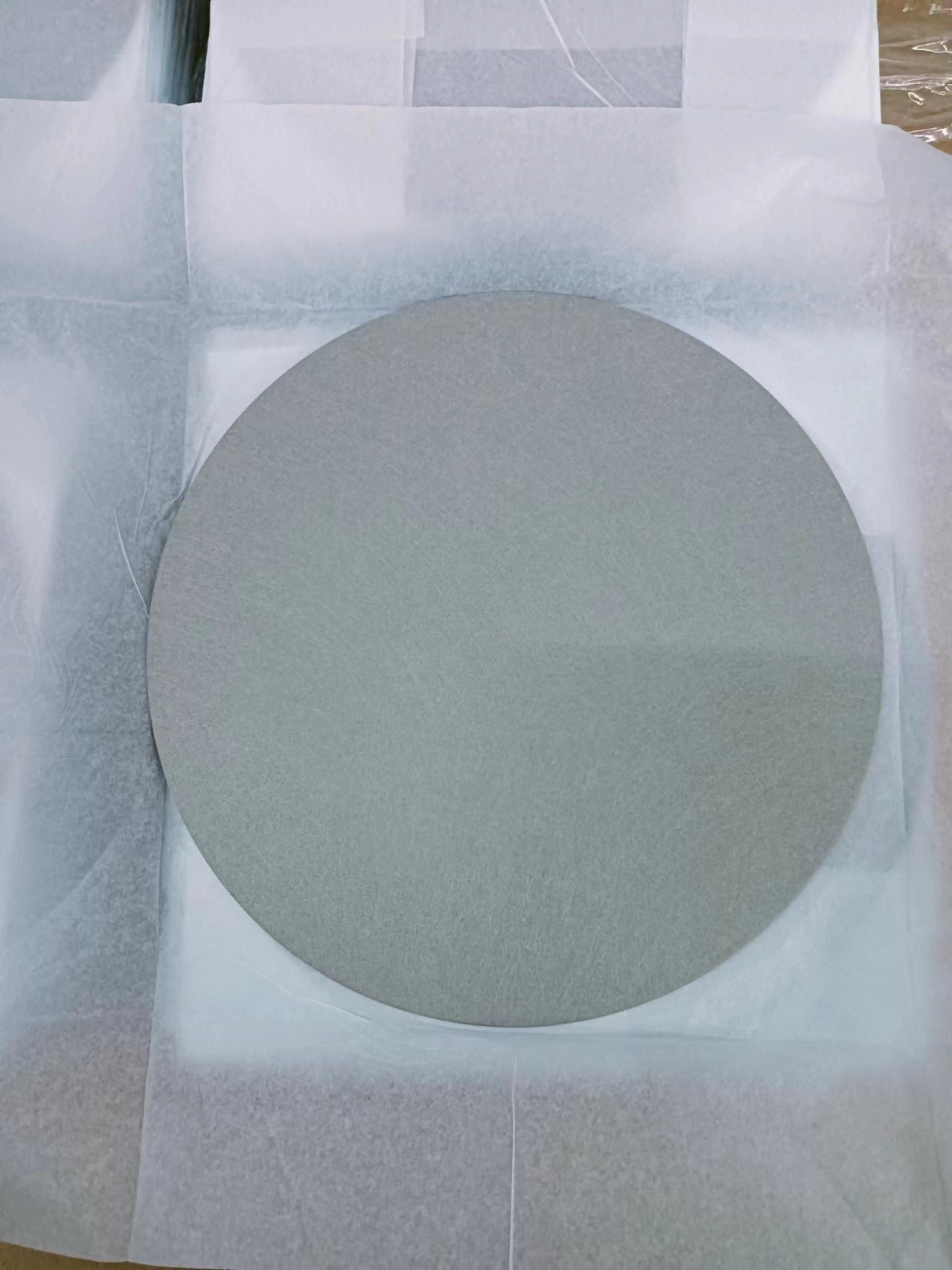

Our Porous fiber felt is produced with ultra-fine metal fibers through special processing non-woven laying and high temperature sintering. The main materials include TA1, Hastelloy,316L and Fecral so on.


Ultra-fine titanium fiber porous felt has the advantages of high porosity, uniform pore size distribution and strong corrosion resistance. It is an ideal anode diffusion layer application material for PEM hydrogen production.


2. Main features:

Material TA1
Fiber Diameter Regular 12um 20um 40um 50um (Customized as request)
Thickness Regualr 0.2mm-2mm(Customized as request)
Porosity 50-90% Customized as request)
Dimension Max:1000mm*1500mm (Customized as request)


Hydrogen energy PEM-WE pure water electrolysis hydrogen production

The ultra-fine titanium fiber felt achieves the best performance in the anode diffusion layer of PEM for water electrolysis hydrogen production with high porosity and high specific surface area.This results in more efficient fluid and gas passage.


In the field of hydrogen health, it is the most preferred material for improving the purity of hydrogen,the stability and lifetime of electrolyzers.

High-Efficiency Ultra-Fine Porous Metal Fiber Felt And Titanium fiber Felt 2



Key words:

★Uniform pore size distribution

★strong corrosion resistance

★good water permeability

★high porosity

★ good heat dissipation

★ high current density

★low voltage

★ stable performance and long service life.
