Anti Rust 25um Sintered Metal Fiber Felt 79% Porosity For Dust Precipitator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 25um | Weight | 1050g/m2 |
|---|---|---|---|
| Thickness | 0.62mm | Porosity | 79% |
| Bubble Pressure | 1480Pa | Product Name | Sintered Metal Fiber Felt |
| Highlight | 25um diameter sintered metal fiber felt,anti rust sintered metal fiber felt,79% porosity sintered metal fiber felt |
||
Product Description

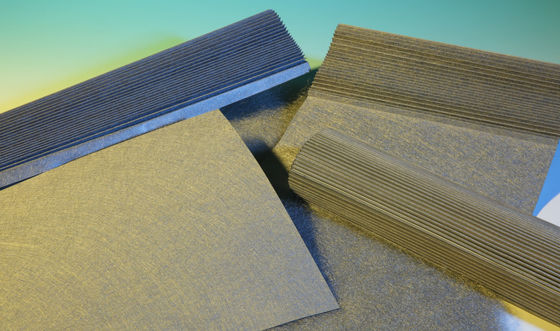

metallic sintered fiber felt media
【Description】
The stainless felt is formed by steel fibers with uniform diameter and processed by air-laid and then vacuum sintered, so that the felt possess excellent strength.
The muti-layer structure of the filter material increases the dirt holding capacity; the uniform network structure and the pore size provide the filter material excellent porosity.
The muti-layer structure of the filter material increases the dirt holding capacity; the uniform network structure and the pore size provide the filter material excellent porosity.
* High-pressure resistance, high-temperature resistance, corrosion resistance;
* Repeatable cleaning and regeneration
* Less pressure loss and higher flow rate;
* Repeatable cleaning and regeneration
* Less pressure loss and higher flow rate;
Material available: Stainless Steel, Inconel, Hastelloy
【Application】
Filtration for chemical fiber, film, viscose and other industries;
Using for high-temperature flue gas dust precipitator;
Petroleum and petrochemical, fuel, hydraulic oil filtration ,etc.
Using for high-temperature flue gas dust precipitator;
Petroleum and petrochemical, fuel, hydraulic oil filtration ,etc.
【Parameters】
| Efficiency (μm) | Thickness(mm) | Porosity (%) | Bubble Point (Pa) | Permeablity(L/dm².min) |
| 3 | 0.37 | 67 | 13000 | 13 |
| 5 | 0.43 | 80 | 7600 | 35 |
| 7 | 0.36 | 74 | 5050 | 60 |
| 10 | 0.34 | 78 | 3700 | 85 |
| 15 | 0.38 | 80 | 2470 | 170 |
| 20 | 0.51 | 82 | 1850 | 265 |
| 25 | 0.62 | 79 | 1480 | 325 |
| 30 | 0.62 | 79 | 1235 | 450 |
| 40 | 0.63 | 76 | 900 | 620 |
| 60 | 0.57 | 83 | 600 | 1350 |
| 86 | 1.00 | 84 | 480 | 1470 |
| 80 | 1.00 | 85 | 450 | 1510 |
| 90 | 1.20 | 88 | 410 | 1740 |
| 100 | 1.30 | 89 | 360 | 2000 |
When you are looking for something as important as media filters, you need to find the highest-quality products at affordable prices. Porous Metal Filters offers a wide array of sintered porous metal filters and wire mesh products for many industries, including oil and gas, power generation, water treatment, industrial filtration, polymer filtration, and bulk powder handling companies. We understand that you need custom stainless steel filters for your needs. Our porous metal filtration media company has the solution you need.
