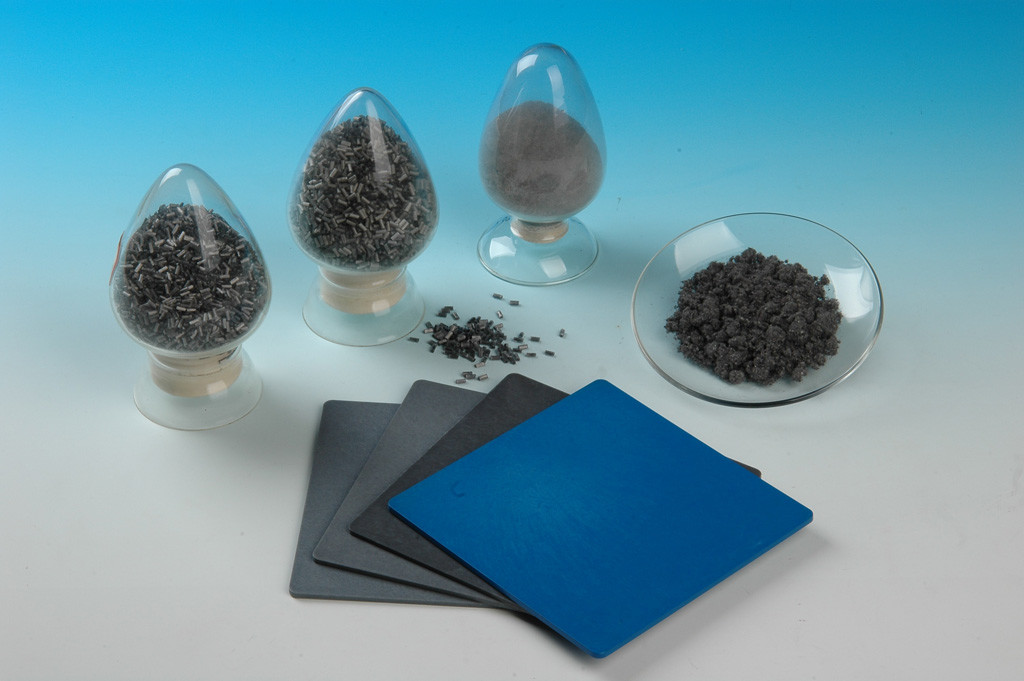

Product Name: Conductive Plastic Agglomerates
Huitong Conductive pellet is a stainless steel filler material used in plastic compounds to provide electrically conductive properties. It is frequently used to replace metal dye-cast in the automotive industry in order to reduce weight while still providing excellent shielding effectiveness.
It can be used as a masterbatch and has been designed for easy dispersion into the polymer matrix for injection molding (dry blend) and compounding.
PBT is known for its excellent chemical resistance thereby making it an ideal material for environments that have exposure to automotive type fluids (gasoline, motor oil, glycol 50/50 mix, brake and transmission fluids).
* High shielding effectiveness at low load levels
* Lightweight metal replacements
* Compatible with any color additive
* Low impact on mechanical properties
Range Of Application: Plastic products such as PVC, PP, PA, PC, TPU, PE and ABS are available. It is easy to color and recyclable.
ENGINEERING AND PRODUCT SUPPORT
Our experienced engineers are available to help with optimal material selection and manufacturing strategies for each project. This includes support to ensure properly matched EMI gaskets, product design strategies, tooling, and other needs.
|Fiber Filaments (f)||5000~10000|
|Agglomerate length(mm)||1～10 (its length should be consistent for same specification)|
|Agglomerate Diameter (mm)||2|
|Agglomerate External Appearance||the surface is smooth|
No Packaging Size Limitations
Dry blends (that use multiple pellet mixtures) have packaging limitations – they are sold only in smaller bags or containers, and carry the risk of the heavier pellets settling during transportation.
When settling occurs, it results in inconsistency in shielding and mechanical performance. Large volume programs can save significant labor hours by using single pellet products such as PREMIER.
