Hunan Huitong Advanced Materials Co., Ltd. 86-731-88701028 info@ht-metalfiber.com

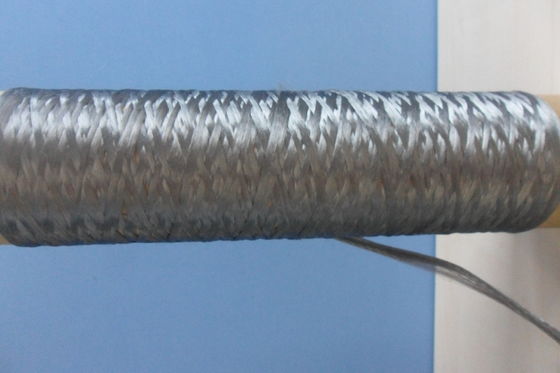

Heat Resistant Metallic Metal Fiber , 8um Conductive Metal Thread

Heat Resistant Metallic Metal Fiber , 8um Conductive Metal Thread

  • High Light

    8um metallic metal fiber

    ,

    heat resistant metallic metal fiber

    ,

    8um conductive metal thread

  • Features
    Conductive
  • MOQ
    10kg
  • Type
    8um
  • Material
    316L
  • Product Name
    Pure Stainless Steel Fiber
  • Certification
    SGS
  • Place of Origin
    Yiyang,China
  • Brand Name
    huitong
  • Certification
    SGS
  • Model Number
    8um
  • Minimum Order Quantity
    10kg
  • Price
    Negotiable
  • Packaging Details
    paper carton
  • Delivery Time
    depends on quantity
  • Payment Terms
    T/T
  • Supply Ability
    10tons per months

Heat Resistant Metallic Metal Fiber , 8um Conductive Metal Thread

Pure stainless steel fiber



Product Name: Metal Fiber Twist Thread



Component:Stainless steel of 304 or 316L, of fecralloy



Descriptions: Metal fibers are produced as thin filaments with diameters ranging from 1 to 80 μm. Among the various forms are chopped fibers and needlefelt. Chopped fibers can be used in wet laid operations. Needlefelt forms composed of or containing metal fibers are often sintered to produce a stiff rigid media. Metal fibers are produced from a variety of metal alloys. Included are stainless steel, nickel, nickel alloy, and high temperature resistant alloys. Table 4.39 lists properties of some of the alloys used in filter media.



Metal fibers in alloys 316L, Fecralloy, Inconel 601 and Hastelloy® provide high-temperature corrosion resistance at the surface and in the underlying steel.



Application: 1. Antistatic brush
2. High temperature resistant sewing thread
3. Signal transmission line
4. Conductive transmission line
5. Heating wire
6. Intelligent clothes



Technical Parameter:

Specification Weight per Meter(g) Breaking Load(N) Elongation (%) Average Resistance()
14m×90×1 0.12 25 1.10% 61
12m×90×2 0.17 44 1.10% 42
12m×100×1 0.095 24 1.10% 59
12m×100×2 0.19 41 1.10% 38
12m×100×3 0.28 69 1.10% 22
12m×275×1 0.26 59 1.10% 27
12m×275×2 0.54 75 1.10% 14
12m×275×3 0.78 125 1.10% 9
12m×275×4 1.05 130 1.10% 7
12m×275×5 1.3 160 1.10% 5
12m×275×6 1.5 180 1.10% 4
8m×1000×1 0.42 69 1.10% 16
8m×1000×2 0.85 108 1.10% 8
12m×1000×1 0.95 100 1.10% 7
12m×1000×2 1.9 340 1.10% 4



Packing: Paprer carton with pallet
