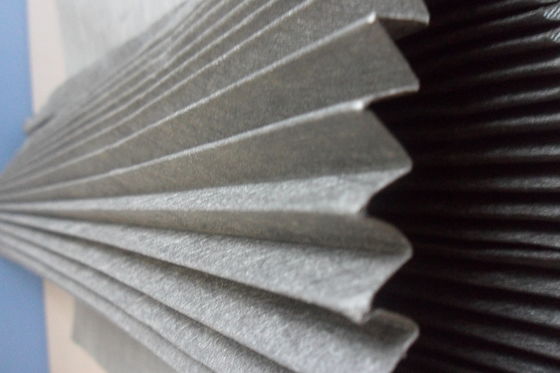

74% Porosity Stainless Steel Filter Disc , Rust Resistant Sintered Felt

sintered felt for indtrial viscose filtering

Metal Filter Cartridge

Advantages of Cartridge Collectors
Especially effective at collecting very fine and light dusts
More airflow in a smaller unit compared to baghouses
Smaller footprint and simpler maintenance
Quickly and easily change cartridges without entering confined space or contact with hazardous materials
Lower initial cost and lower on-going maintenance costs
Easily fitted with high efficiency filters (MERV 16) for maximum collection efficiency

【Description】

The metal fiber with a diameter of micron is passed through processing like non-woven, superposed, high-temperature sintering, and then rolled and welded. Its main materials are stainless steel, iron chrome aluminum alloy,Hastelloy, etc. Long-term use temperature is 300C -1000C, with good gas permeability, high filtration precision, renewable,long service life.

【Features】

* High temperature resistance (<1000 °C), strong thermal shock resistance, corrosion resistance and high strength;

* High interception efficiency, emission concentration can be less than 5mg/Nm3;

* Good gas permeability; low initial pressure and low energy consumption.

* High wind speed: 1~3m/min;

* Online backflushing and offline cleaning, the regeneration effect is good.

* Long lifetime;

* Conductivity, to avoid static electricity caused by dust explosion;

* It can effectively prevent the burning of bags.

* Easy to recycle and avoid secondary pollution;

* The size and footprint of the dust removal system can be greatly reduced.

【Application】

Metallurgical industry; precious metal recycling; chemical industry; power industry, steel industry; cement industry; biomass energy; glass industry; other environmental industry.

【Parameters】

* Baghouse collector size(cartridge):130-L6000,160-L6000

* Diameter: 60-200mm Size: 130, 160

* Maxium single unit size(no welding ): 2000mm

* Normal collector size: 6000mm. Or 1200mm*N

* Filter Cartridge Frame: bag cage or punching plate

* Length be adjustable by flange.
