Ultrafine Conductive Metal Fiber For Textile Intelligent Heating Fields

Place of Origin China
Brand Name Huitong
Certification SGS,ISO9001-2015
Model Number Ultrafine Metal Fiber Composite Wire-- Applicated In Textile,intelligent heating fields
Minimum Order Quantity 10kg
Packaging Details 1kg/spool, customized packaging as required.
Delivery Time 15-30days
Supply Ability 2000-10000kg/month
Product Details
Material Ultrafine Metal Fiber Composite Wire,316,304,FCA Color Metallic Luster
High Light

FCA Ultrafine Conductive Metal Fiber

,

Intelligent Heating Fields Conductive Metal Fiber

,

316 Stainless Steel Conductive Thread

Leave a Message
Product Description

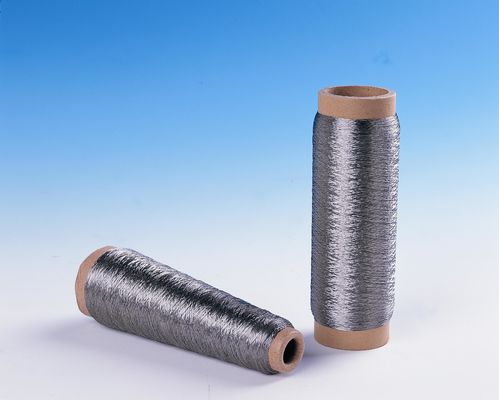

Ultrafine Metal Fiber Composite Wire-- Applicated In Textile,intelligent heating fields

【Description】
The ultra-fine metal fiber composite wire is made of a single or multi-strand microfiber wire twisted to form a flexible wire.
Features:
* Good electrical conductivity
* High strength, high elastic modulus
* Abrasion resistance, corrosion resistance
* Excellent thermal stability in an oxidizing atmosphere
* High durability, easy to process, easy to woven into textiles
* Wide range of resistance, customized heating resistance
The intelligent heating element made of ultra-fine metal fiber composite wire produced by our company has the advantages of softness, folding resistance, uniform heat generation and long service life.

【Application】
Intelligent heating clothing (heating gloves, heating belts, heating insoles, heating socks, heating vests, jackets, sleeping bags, etc.), heating pads, car seat heating, car steering wheel
【Parameters】
Item weight/m (g) strength(N) Elongation Average Electricity Resistance(Ω)
14μm×90×1 0.12 25 1.10% 61
12μm×90×2 0.17 44 1.10% 42
12μm×100×1 0.095 24 1.10% 59
12μm×100×2 0.19 41 1.10% 38
12μm×100×3 0.28 69 1.10% 22
12μm×275×1 0.26 59 1.10% 27
12μm×275×2 0.54 75 1.10% 14
12μm×275×3 0.78 125 1.10% 9
12μm×275×4 1.05   130 1.10% 7
12μm×275×5 1.3  160 1.10% 5
12μm×275×6 1.5 180 1.10% 4
8μm×1000×1 0.42 69 1.10% 16
8μm×1000×2 0.85 108 1.10% 8
12μm×1000×1 0.95   100 1.10% 7
12μm×1000×2 1.9 340 1.10% 4
