0.37mm Thickness 316L Stainless Steel Fiber Sintered Felt 67% Porosity 3um 975g/M2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | MP3 | Diamter | 3um |
|---|---|---|---|
| Weight | 975g/m2 | Thickness | 0.37mm |
| Porosity | 67% | Bubble Pressure | 12500Pa |
| Permeability | 10L/dm2.min | ||
| High Light | 0.37mm Thickness Stainless Steel Fiber,67% Porosity Stainless Steel Fiber,Sintered SS Fiber Felt |
||
Product Description
3um 975g/M2 0.37mm Thickness 316L Stainless Steel Fiber Sintered Felt 67% Porosity Sintered Felt

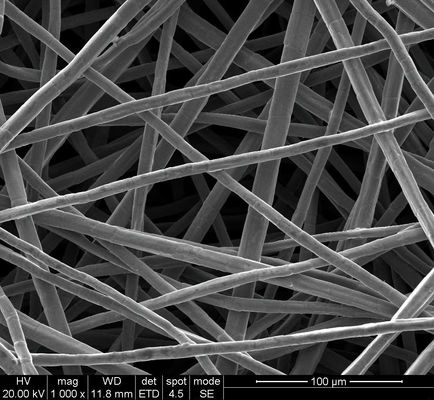

Stainless steel fiber sintered felt
It has excellent strength,multi-layer structure increases the dirt holding capacity of the filter material, uniform mesh structure and pore size make it has excellent porosity. High pressure resistance, high temperature resistance, corrosion resistance. Can be washed and reused multiple times, small pressure loss and large flow.
| Diameter (um) | Thickness (mm) | Porosity (%) | Bubble Point(Pa) | Air Permeability L/dm².min |
| 3 | 0.37 | 67 | 13000 | 13 |
| 5 | 0.43 | 80 | 7600 | 35 |
| 7 | 0.36 | 74 | 5050 | 60 |
| 10 | 0.34 | 78 | 3700 | 85 |
| 15 | 0.38 | 80 | 2470 | 170 |
| 20 | 0.51 | 82 | 1850 | 265 |
| 25 | 0.62 | 79 | 1480 | 325 |
| 30 | 0.62 | 79 | 1235 | 450 |
| 40 | 0.63 | 76 | 900 | 620 |
| 60 | 0.57 | 83 | 600 | 1350 |
| 86 | 1.00 | 84 | 480 | 1470 |
| 80 | 1.00 | 85 | 450 | 1510 |
| 90 | 1.20 | 88 | 410 | 1740 |
| 100 | 1.30 | 89 | 360 | 2000 |
