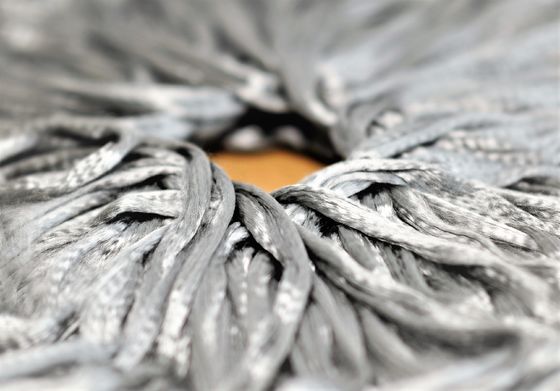

10 Micron High Strength Bundle Drawing Metal Fiber For Industrial Application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Flexibility Similar To Chemical Fibers And High Specific Surface Area | Fiber Diameter | 1-100um |
|---|---|---|---|
| Material | 316L/304/310S/ TA1& N6 | Color | Light Gray |
| Highlight | High Strength And Super-Fineness Metal Fiber,100 Micron Metal Fiber,1 Micron Metallic Metal Fiber |
||
Product Description
1 To 100 Micron High Strength Bundle Drawing Metal Fiber
Component: Stainless steel of 316L or 304, Fecralloy ,Titanium TA1,Nickel N6 etc.

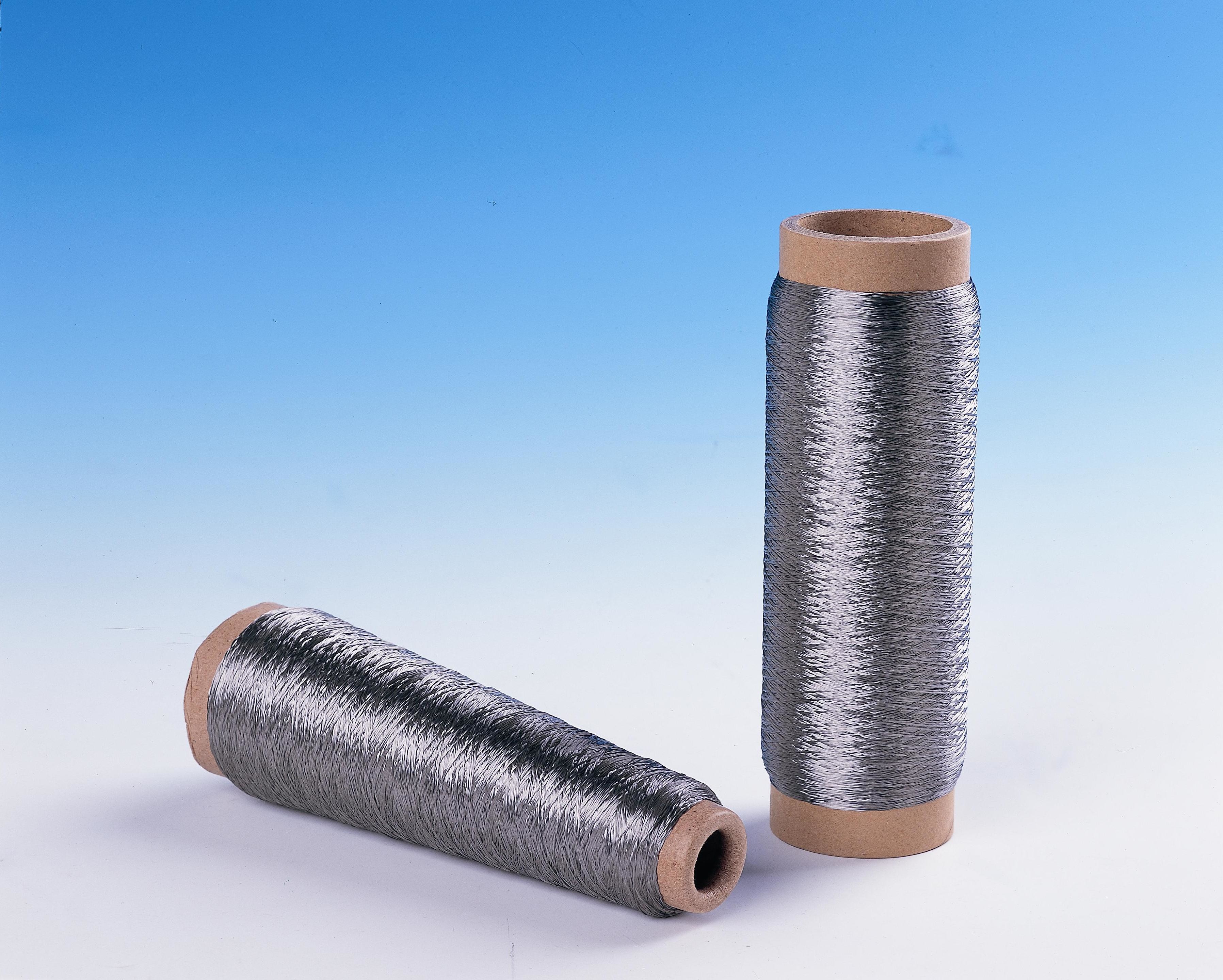

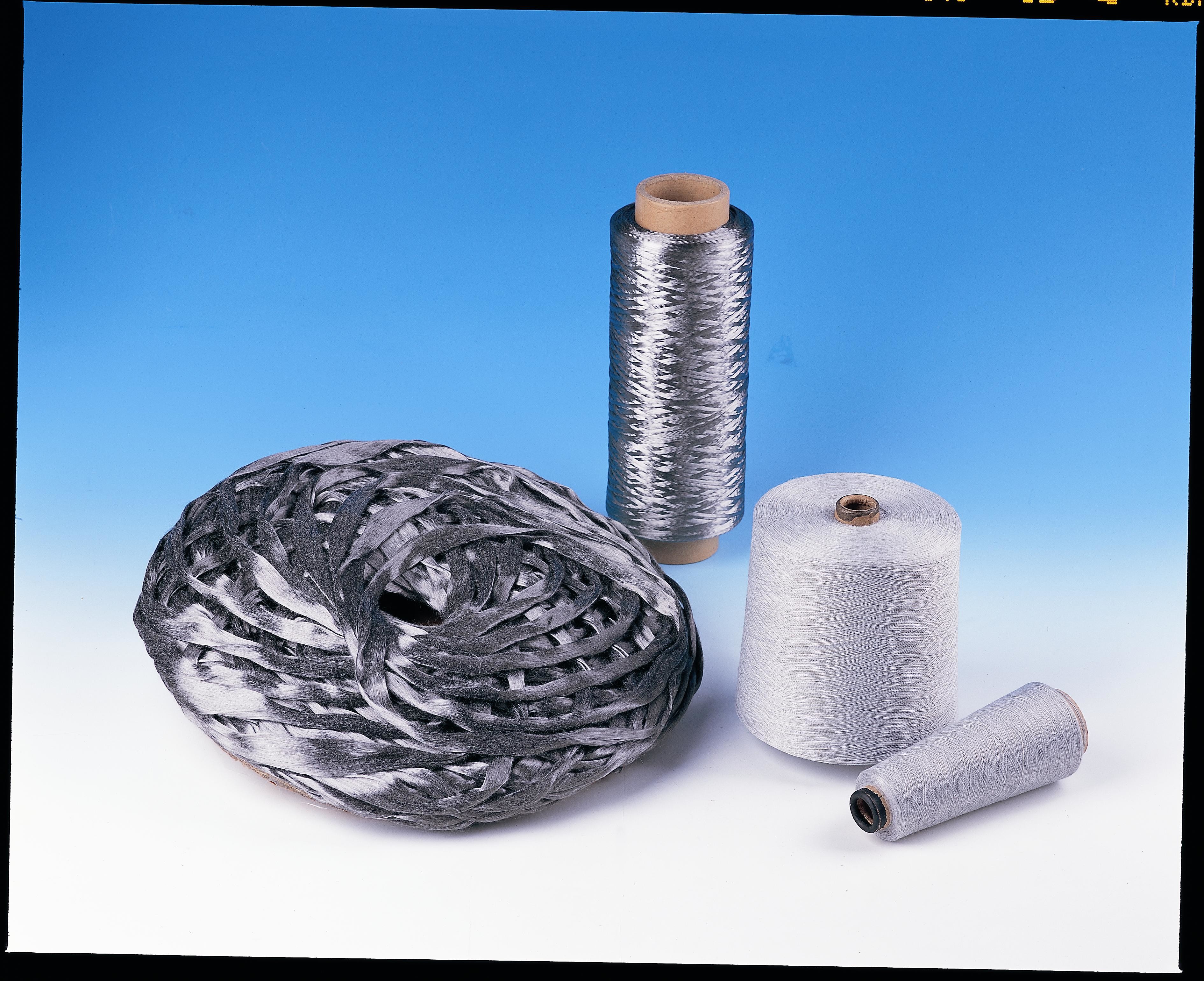

Descriptions: Metal fiber is manufactured by stainless steel wire & Titanium wire & nickel wire and so on. by using bundle drawing process, to bring the diameter until 1um. It has the metallic luster and its surface is glossy. It can produce new properties besides original metal property. Not only holding properties as electric conductivity, heat conductivity and corrosion resistance of metal wire, it also gains characteristics such as flexibility similar to chemical fibers and high specific surface area. It is the basic material of producing various metal fiber products, covering the fields of industry, civilian and military, such as textile, filtration, metallurgy, automotive and advanced hydrogen production technology etc.

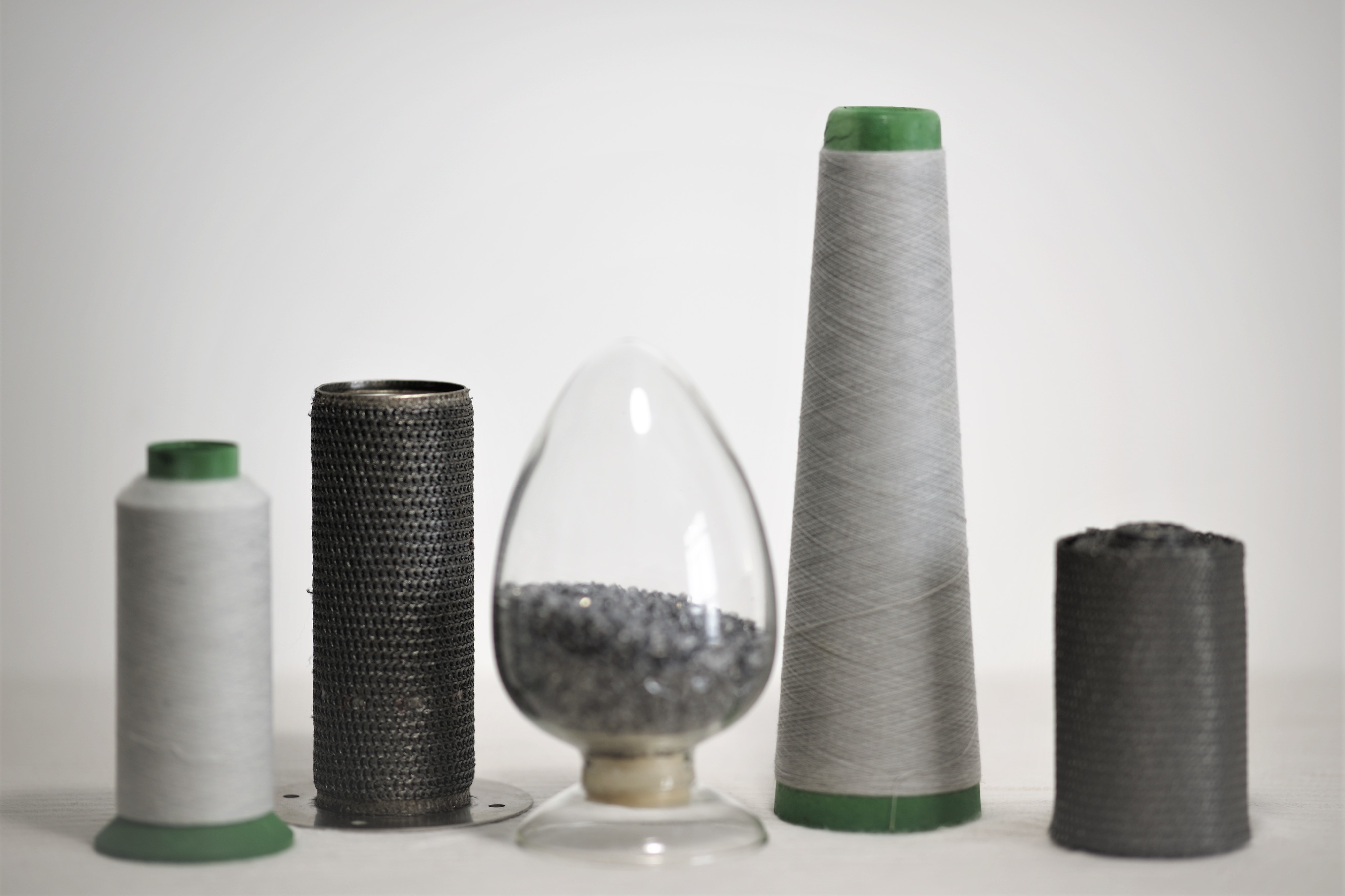

Metal fibers are mainly used in manufacturing products as follows:
- Pure stainless steel fiber fabrics
- Blended spun stainless steel fiber fabrics
- Stainless steel fiber sintered felt
- Conductive plastics with electromagnetic shielding and anti-static performance
- Fiber reinforced material
- Anti-static brush, anti-static wrist band etc
- High temperature heating body
- High temperature conveyor belt
- Application for advanced electrolyzer in hydrogen production technology
- High temperature filter media
- Signal transmission wire & intelligent heating wire
Main technical parameters as follows:
|
Diameter(μm) |
Filaments(f) |
Strength(cN) |
Elongation(%) |
Weight/meter(g/m) |
|
4.5 |
12000 |
≥2.0 |
≥0.7 |
1.40～1.64 |
|
6.5 |
6000 |
≥4.5 |
≥1.0 |
1.56～1.70 |
|
7.3 |
6000 |
≥5.5 |
≥1.0 |
1.98～2.14 |
|
7.3 |
6000 |
≥4.0 |
≥0.8 |
1.92～2.20 |
|
8 |
6000 |
≥7 |
≥1.05 |
2.34～2.57 |
|
8 |
6000 |
≥4.0 |
≥0.85 |
2.26～2.62 |
|
12 |
2000 |
≥18 |
≥1.1 |
1.82～1.98 |
|
12
|
2000
|
≥13.5 |
≥0.9 |
1.76～2.04 |
|
22 |
1000 |
≥50 |
≥1.25 |
3.06～3.3 |
