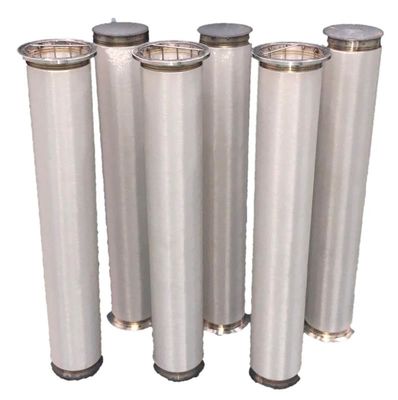

Anti Corrosion 1.5m Long Metal Filter Cartridge With Wire Mesh

Place of Origin Yiyang,China
Brand Name huitong
Certification ROHS
Model Number 130-L1600
Minimum Order Quantity 100elements
Price Negotiable
Delivery Time depends on quantity
Payment Terms T/T
Supply Ability 10000 elements per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 316L Thickness 0.44mm
Permeability 150 Length 1500~7000mm
Product Name Metal Filter Cartridge Certification ROHS
High Light

1.5m long Metal Filter Cartridge

,

anti corrosion Metal Filter Cartridge

,

1.5m long wire mesh filter

Leave a Message
Product Description

Stainless Steel Bag Filter Housing Strainers Baskets

Product description

【Description】

The metal fiber with a diameter of micron is passed through processing like non-woven, superposed, high-temperature sintering, and then rolled and welded. Its main materials are stainless steel, iron chrome aluminum alloy,Hastelloy, etc. Long-term use temperature is 300C -1000C, with good gas permeability, high filtration precision, renewable,long service life.

【Features】

* High temperature resistance (<1000 °C), strong thermal shock resistance, corrosion resistance and high strength;

* High interception efficiency, emission concentration can be less than 5mg/Nm3;

* Good gas permeability; low initial pressure and low energy consumption.

* High wind speed: 1~3m/min;

* Online backflushing and offline cleaning, the regeneration effect is good.

* Long lifetime;

* Conductivity, to avoid static electricity caused by dust explosion;

* It can effectively prevent the burning of bags.

* Easy to recycle and avoid secondary pollution;

* The size and footprint of the dust removal system can be greatly reduced.

【Application】

Metallurgical industry; precious metal recycling; chemical industry; power industry, steel industry; cement industry; biomass energy; glass industry; other environmental industry.

【Parameters】

* Baghouse collector size(cartridge):130-L6000,160-L6000

* Diameter: 60-200mm Size: 130, 160

* Maxium single unit size(no welding ): 2000mm

* Normal collector size: 6000mm. Or 1200mm*N

* Filter Cartridge Frame: bag cage or punching plate

* Length be adjustable by flange.

Product Type

Type

Fiber Diameter

(um)

Porosity

(%)

Thickness

(mm)

Weight/m2

(g/m2)

Permeability

(L/dm2.min)

Force

(N)

Bending force

(N)

HT-LA-12

6/30

74

0.44
