Ultrafine Metal Fiber (316L 1um 1.5um 2um Available) For Semi-conductor Gas Filter/High Purity Gas Filters Solution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | 80-100um | Packing | Flexible |
|---|---|---|---|
| Application | Semi-conductor Gas Filter/High Purity Gas Filters Solution | Material | Stainless Steel 316L/Hastelloy C22/C59/Nickel 200 |
| Diameter | 1um/1.5um/2um | ||
| Highlight | Short SS Fiber,2mm Stiainless Steel Fiber,8um Stiainless Steel Fiber |
||
Product Description

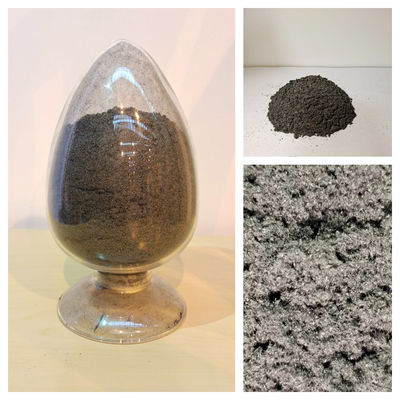

Ultrafine Metal Fiber (316L 1um 1.5um 2um Available) For Semi-conductor Gas Filter/High Purity Gas Filters Solution
Product type: 316L stainless steel short fiber
Fiber Diameter: 1um/1.5um/2um available
Cut Length: 80-100um
Chemical Composition of Raw material( Wt% )
|
Elements
|
C
|
Si
|
Mn
|
Ni
|
Cr
|
Mo
|
S
|
P
|
|
Standard
|
≤0.03
|
≤1.00
|
≤2.00
|
10~14
|
16~18
|
2~3
|
≤0.03
|
≤0.045
|
|
Value
|
0.028
|
0.56
|
0.5
|
10.85
|
16.97
|
2.1
|
0.003
|
0.027
|
Ultrafine metal fiber for semi-conductor gas filter/High Purity Gas Filters Solution has their unique properties such as high surface area, thermal/chemical stability, and mechanical durability. These materials are particularly useful in industries requiring precision gas purification, such as semiconductor manufacturing, automotive emissions control, and industrial air quality management.
Applications of Ultrafine Metal Fiber in Gas Filtration
Semiconductor Manufacturing
High-Purity Gas Filtration: Removes sub-micron particulates and chemical contaminants from process gases (e.g., N₂, Ar, H₂) used in chip fabrication.
Corrosive Gas Handling: Resists degradation from aggressive gases (e.g., HF, Cl₂) in etching and deposition processes.
Automotive & Emissions Control
Exhaust Gas Filtration: Captures fine particulate matter (PM2.5) and NOₓ in catalytic converters.
Hydrogen Fuel Cells: Filters impurities from hydrogen feed gas to enhance fuel cell efficiency.
Industrial & Environmental Air Purification
Volatile Organic Compound (VOC) Removal: Metal fiber filters with catalytic coatings break down harmful VOCs.
High-Temperature Filtration: Used in power plants and metal processing to filter hot exhaust gases.
Medical & Pharmaceutical
Sterile Gas Filtration: Ensures ultra-clean air for pharmaceutical production and medical-grade gas supply.
Key Advantages of Metal Fiber Filters
High Porosity & Low Pressure Drop: Efficient gas flow with minimal energy loss.
Thermal Resistance: Withstands extreme temperatures (up to 1000°C for some alloys).
Chemical Inertness: Resists acids, alkalis, and solvents.
Reusable & Cleanable: Unlike polymer filters, metal fibers can be regenerated via heat or chemical cleaning.
Leading Manufacturers & Technologies
Bekaert (Belgium): Metal fiber nonwoven mats for high-efficiency filtration.
Mott Corporation (US): Sintered metal fiber media for semiconductor gas systems
Nippon Seisen (Japan): Ultrafine stainless steel short fibers for semi conductor applications.
Hunan Huitong(China):Ultrafine 316L/Hastelloy (C22&C59)/Nickel Short Fiber for semi-conductor High Purity Gas Filters Solution
