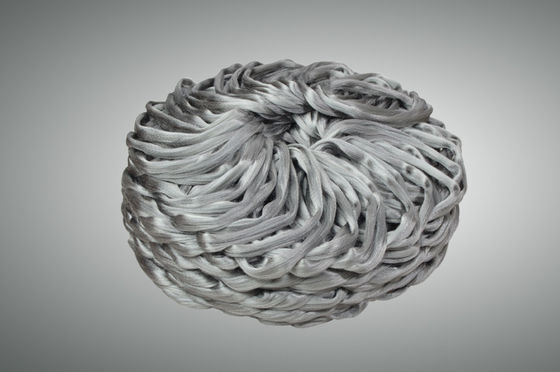

316L 304 302 Electrical And Thermal Conductivity Stainless Steel Metal Fiber 1um-100um

Place of Origin Yiyang,China
Brand Name Huitong
Certification SGS,ISO9001-2015
Model Number Stainless Steel Fiber / Staple Fiber/Short Fiber
Minimum Order Quantity 10kg
Price Negotiable
Packaging Details paper carton
Delivery Time depends on quantity
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10tons per months
Product Details
Material 316L\304 Stainless Steel Fiber Weight/meter 1.4-3.3g/m
Diameter 1-40um Certification ROHS、SGS、ISO9001-2015
Length Customized As Request Type Metal Fiber/Staple Fiber/ Short Fiber
High Light

40um Stainless Steel Metal Fiber

,

302 Stainless Steel Metal Fiber

,

Anti Static Stainless Steel Fiber

Leave a Message
Product Description

316L/304/302 1um-40um Ultra-Fine Electrical And Thermal Conductivity Corrosion Resistance Stainless Steel Metal Fiber



Principal Component



316L,304,302,430,434 and other stainless steel materials.



Product Description



Made of stainless steel wire by bundle drawing process, the diameter is as fine as 1μm ~ 40μm. Since the diameter of stainless steel fiber reaches the ultra-fine-micron level, it not only maintains the properties of stainless steel such as electrical conductivity, thermal conductivity, corrosion resistance, high elastic modulus and tensile strength, but also has softness and high specific surface area similar to other textile fibers, so It is the perfect base materials for the production of various stainless steel fiber products. It can be widely used in textile, filtration, metallurgy and environmental protection and other fields which covering the fields of industry, civil and military.



【Technical Specs】

Diameter(μm) Filaments(f) Strength(cN) Elongation(%)



Weight/meter(g/m)

4.5 12000 ≥2.0 ≥0.7 1.40~1.64
6.5 6000 ≥4.5 ≥1.0 1.56~1.70
7.3 6000 ≥5.5 ≥1.0 1.98~2.14
6000 ≥4.0 ≥0.8 1.92~2.20
8 6000 ≥7 ≥1.05 2.34~2.57
≥4.0 ≥0.85 2.26~2.62
12 2000 ≥18 ≥1.1 1.82~1.98
≥13.5 ≥0.9 1.76~2.04
22 1000 ≥50 ≥1.25 3.06~3.3



Annotate:

1)The diameter of the fiber can be produced between 1 and 100 micron according to the customer’s request.

2)The fiber’s filaments and breaking strength of single fiber can be controlled by the customer’s request.

3)The fiber’s room temperature resistance will change along with the stainless steel state.



Main Application:



1 Pure stainless steel fiber fabric

2 Blended spun stainless steel fiber Fabrics

3 Metal fiber sintered felt

4 Conductive plastics for electromagnetic shielding and anti-static,anti-counterfeit and anti-static paper

5 Fiber reinforced materials

6 anti-static brush,anti-static wrist brand etc

7 High Temperature heating body

8 High temperature cushion mould,high temperature conveyor belt



Package:



1 Cardboard conical tube



2 Cylindrical tube



3 Spool
