Super Fine 1-100um Corrosion Resistant Stainless Steel Sintered Metal Fiber with High Electrical Conductivity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Grey | Material | 316L 302 304 430 434 |
|---|---|---|---|
| Application | Textile,filtration,metallurgy, Civil And Military Industry | ||
| Highlight | 302 SS Sintered Metal Fiber,Printing Machine Sintered Metal Fiber,Anti Static Fiber 8M |
||
Product Description

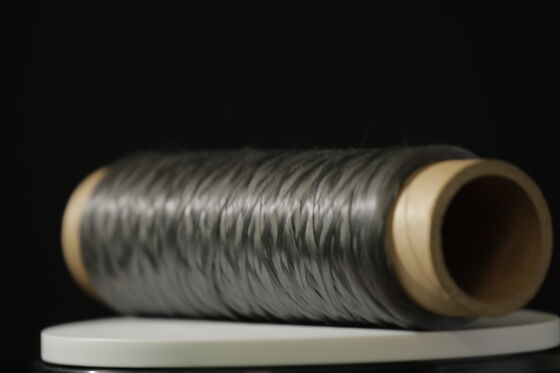

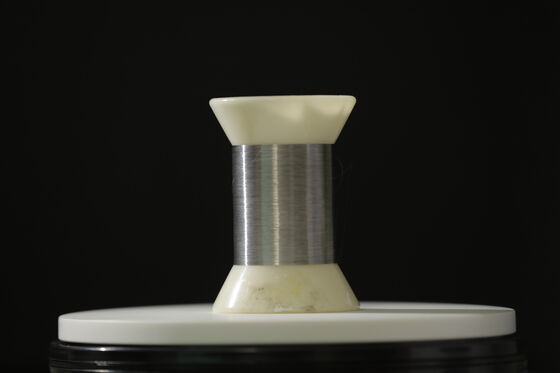

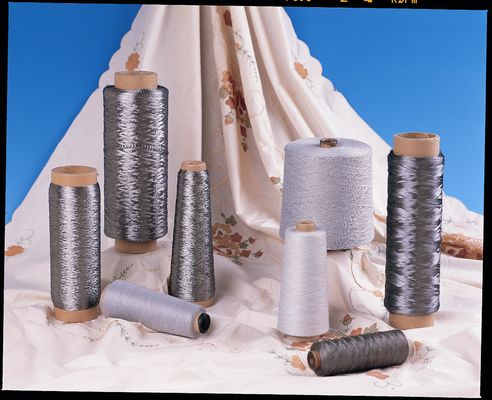

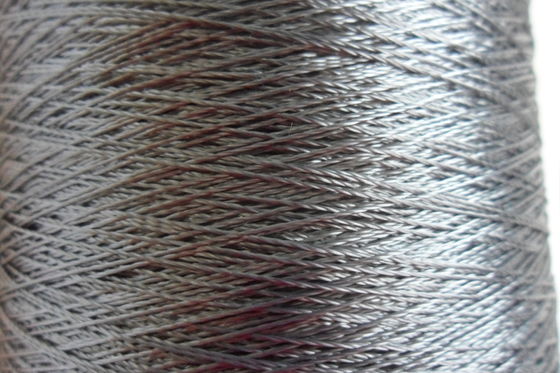

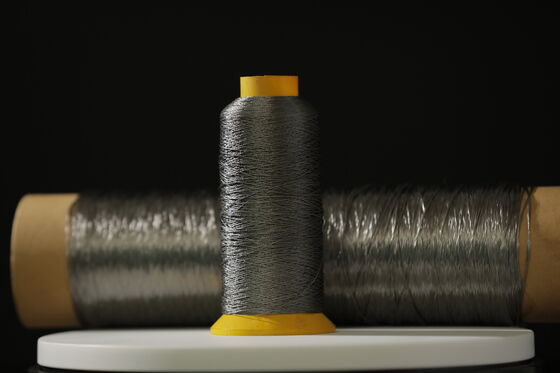

Super Fine 1-100μm Stainless Steel Sintered Metal Fiber
Our stainless steel fiber is manufactured using an advanced bundle drawing process, producing micron-level diameters ranging from 1-100μm. These fibers feature a distinctive metallic stainless steel appearance with a bright, polished surface. The micron-scale dimensions impart unique characteristics beyond traditional metal properties, combining stainless steel's inherent electrical conductivity, thermal conductivity, and corrosion resistance with the softness and high surface area typically associated with chemical fiber products.
Key Characteristics
- Micron-scale diameters from 1-100μm
- Superior electrical and thermal conductivity
- Excellent corrosion resistance
- Enhanced softness and flexibility
- High surface area-to-volume ratio
- Bright metallic stainless steel finish
Technical Specifications
| Diameter (μm) | Filament Count | Strength (cn) | Elongation Rate (%) | Resistance per Meter (KΩ/m) |
|---|---|---|---|---|
| 4.5 | 3500-10500 | 2.0 | 0.7% | - |
| 6.5 | 3500-7000 | 4.5 | 1.0% | 20.68 |
| 7.3 | 3500 | 5.5 | 1.0% | 16.39 |
| 8 | 2250-4500 | 7.0 | 1.05% | 13.65 |
| 12 | 2000-4000 | 18 | 1.1% | 6.07 |
Available Stainless Steel Types: 316L, 302, 304, 430, 434
Operating Temperature Range: 400°C - 600°C
Operating Temperature Range: 400°C - 600°C
Industrial Applications
These stainless steel sintered metal fibers are engineered for diverse industrial applications including textile manufacturing, precision filtration systems, metallurgical processes, chemical processing, and both civilian and military applications where high-performance metallic fiber properties are required.
