Conductive 1.10% Elongation Stainless Steel Fiber 25N Break Loading For Military Camps

Conductive 1.10% Elongation Stainless Steel Fiber 25N Break Loading For Military Camps

  • High Light

    1.10% elongation stainless steel fiber

    ,

    25N break loading stainless steel fiber

    ,

    1.10% elongation steel conductive fiber

  • Features
    Conductive
  • Material
    316L
  • MOQ
    10kg
  • Properties
    Radiation-proof
  • Product Name
    Stainless Steel Fiber
  • Certification
    SGS
  • Place of Origin
    Yiyang,China
  • Brand Name
    huitong
  • Certification
    SGS
  • Model Number
    6um
  • Minimum Order Quantity
    10kg
  • Price
    Negotiable
  • Packaging Details
    paper carton
  • Delivery Time
    depends on quantity
  • Payment Terms
    T/T
  • Supply Ability
    10tons per months

Conductive 1.10% Elongation Stainless Steel Fiber 25N Break Loading For Military Camps

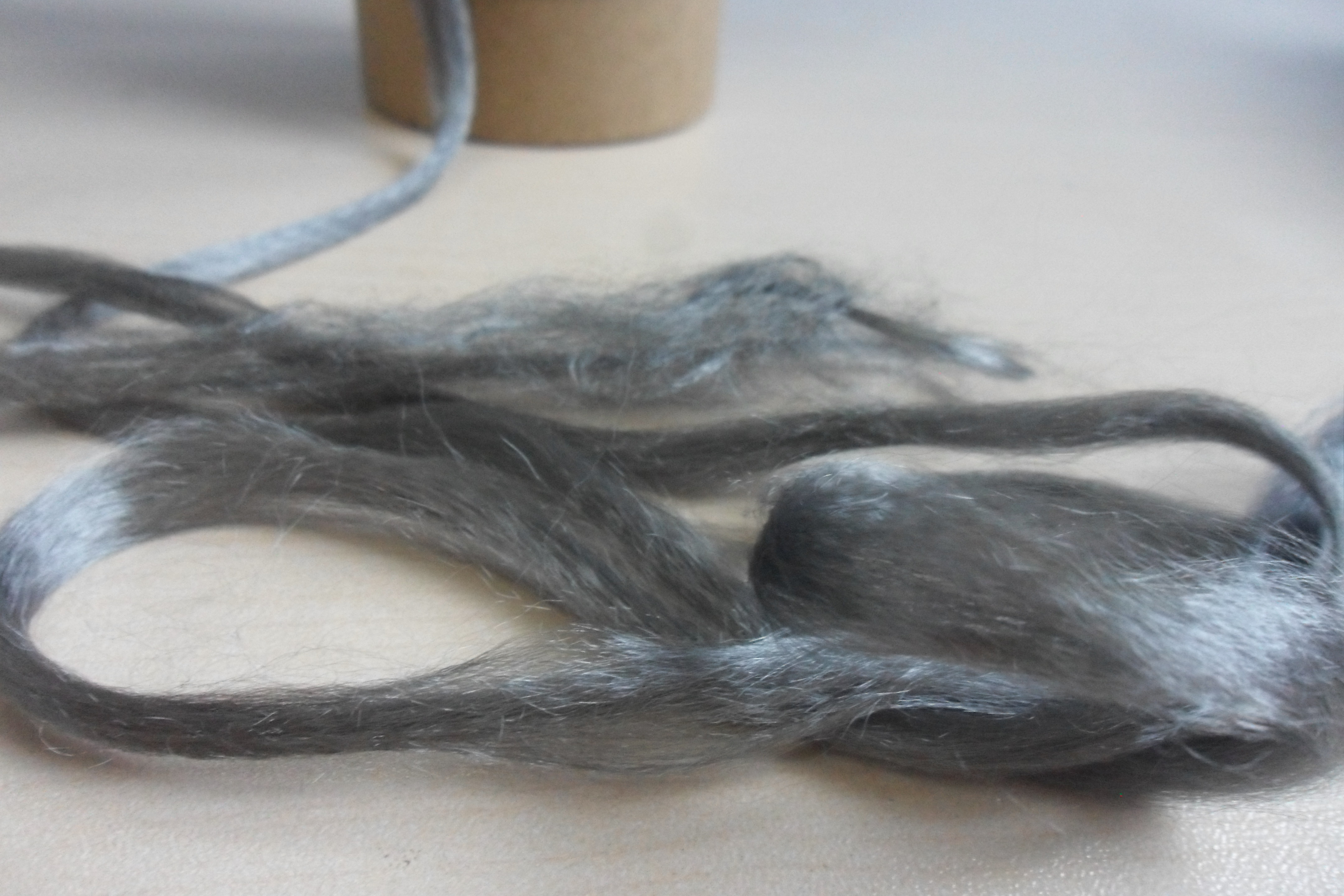

pure stainless steel metal fiber for military camps



Product Name: Metal Fiber Twist Thread



Component:Stainless steel of 304 or 316L, of fecralloy



Descriptions: Metal fiber media are used in liquid and air filter applications where a high degree of heat and chemical resistance is required. They can be welded into filter shapes of high structural integrity. Metal fiber filters are cleanable and reusable. Global Material Technologies, Inc., Palatine, Illinois, USA, markets a metal fiber media under the trade name of VersaFilter®. Mott Corporation of Farmington, Connecticut, USA, produces a variety of filters from fiber metal filter media.



Fabrics incorporating fine metal fibers display outstanding stretchability and compressibility, hence are easily shaped, corrugated and pleated.



Application: 1. Antistatic brush
2. High temperature resistant sewing thread
3. Signal transmission line
4. Conductive transmission line
5. Heating wire
6. Intelligent clothes



Technical Parameter:

Specification Weight per Meter(g) Breaking Load(N) Elongation (%) Average Resistance()
14m×90×1 0.12 25 1.10% 61
12m×90×2 0.17 44 1.10% 42
12m×100×1 0.095 24 1.10% 59
12m×100×2 0.19 41 1.10% 38
12m×100×3 0.28 69 1.10% 22
12m×275×1 0.26 59 1.10% 27
12m×275×2 0.54 75 1.10% 14
12m×275×3 0.78 125 1.10% 9
12m×275×4 1.05 130 1.10% 7
12m×275×5 1.3 160 1.10% 5
12m×275×6 1.5 180 1.10% 4
8m×1000×1 0.42 69 1.10% 16
8m×1000×2 0.85 108 1.10% 8
12m×1000×1 0.95 100 1.10% 7
12m×1000×2 1.9 340 1.10% 4



Packing: Paprer carton with pallet
