Conductive 30um Sintered Metal Fiber Corrosion Resistant

Conductive 30um Sintered Metal Fiber Corrosion Resistant

  • High Light

    30um sintered metal fiber

    ,

    corrosion resistant sintered metal fiber

    ,

    30um conductive metal fiber

  • MOQ
    10kg
  • Temperature
    1000centi Degree
  • Material
    Fecral
  • Diameter
    30um
  • Product Name
    Sintered Metal Fiber
  • Certification
    SGS
  • Place of Origin
    Yiyang,China
  • Brand Name
    huitong
  • Certification
    SGS
  • Model Number
    30um
  • Minimum Order Quantity
    10kg
  • Price
    Negotiable
  • Packaging Details
    paper carton
  • Delivery Time
    depends on quantity
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10tons per months

Conductive 30um Sintered Metal Fiber Corrosion Resistant

Fecral fiber fecral fiber fecral fiber

Iron-chromium-aluminum (FeCrAl) alloys have long been used as high-temperature heating elements. Currently, wrought FeCrAl alloys are under development as one of the promisingcandidates for accident-tolerant fuel (ATF) cladding materials in light-water reactors (LWRs).These alloys have shown excellent corrosion and oxidation resistance in a high-temperature steam environment, compared with current commercial zirconium alloys [6-8]. Their low radiation-induced-swelling and tolerance of off-normal conditions are also worth noting.Under development efforts for ATF FeCrAl alloys, 10–13 wt.% Cr and 5–6 wt.% Al have been employed for improved surface protection effects at both the service temperature and elevated temperatures in accident-case scenarios. Small amount of alloying elements, such as molybdenum (Mo) and/or niobium (Nb), have also been added to improve the strength and control microstructures of FeCrAl alloys.

【Description】

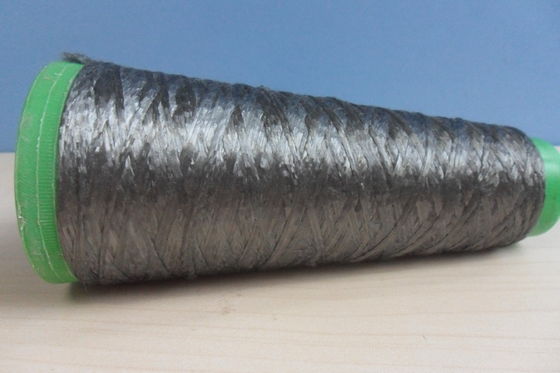

The Fecral fiber is made of iron-chromium-aluminum alloy wire by a bundle drawing process and has a diameter of from 8 μm to 40 μm. Fecral alloy is a new type of electrothermal alloy with high electrical resistance, low temperature coefficient, long service life, high surface load and good oxidation resistance. It can be used in higher temperature environment than stainless steel fibers.

【Application】
It mainly used as raw materials for the manufacture of automobile exhaust gas purifiers(GPF), high temperature filter felts, burners, etc.

【Parameters】
Main technical specification:
Diameter(μm) Strength level Filament (F) Strength(cn) Elongation Rate% Weight/meter(g/m)
8 HS 1700 ≥4.5 ≥0.95 0.55~0.65
MS 1700 ≥3.0 ≥0.75 0.50~0.70
12 HS 1700 ≥12.0 ≥1.0 1.3~1.5
MS 1700 ≥9.0 ≥0.8 1.2~1.6
22 HS 1700 ≥50.0 ≥1.20 4.4~5.0
MS 1700 ≥30.0 ≥1.00 4.2~5.2
12 HS 100×2 ≥19.0 ≥1.1 0.14~0.18
